C3 5.25"" (130 mm) Convertible Speaker System

C3-525

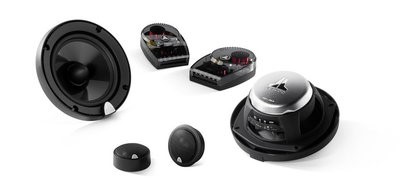

2-Way Convertible Component / Coaxial System: 5.25-inch (13 cm) Woofer, 1-inch (2,5 cm) Silk Dome Tweeter

There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.

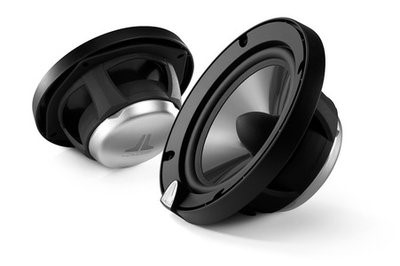

The C3-525 system features 5.25-inch (13 cm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.

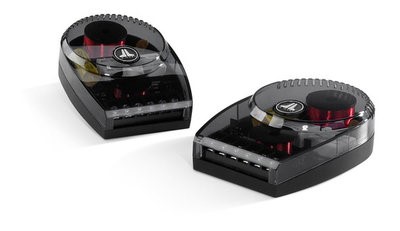

C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!

Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.

Sonic character: Clean and Powerful

Algemene Specificaties:

Continuous Power Handling (RMS) 75 W
Peak Music Power 225 W
Recommended Amplifier Power (RMS) 25 - 150 W / Ch.
System Efficiency 90.0 dB @ 1 W / 1 m
System Nominal Impedance 4 O
System Frequency Response 48 Hz - 25 KHz ± 3 dB
