JBL CLUB A1000 1channel 1000W MONO SUBWOOFER AMPLIFIER

MONO
600 WATT RMS

High performance mono subwoofer car amplifier

Value engineered car amplifier with JBL power and performance.
The JBL Club A1000 mono subwoofer amplifier delivers 1000-Watts RMS using a
Class D amplifier design to ensure high output and minimum current draw. Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your car&rsquos factory radio. You can use the low-pass filter and variable bass boost to maximize the performance of your subwoofer and enclosure, while a phase switch ensures that the bass will blend well with your full-range speakers.

Features
Compact size
High and low level input
Variable crossover and bass boost
Low noise and distortion
Input Level Control
Full on-board protection
Phase Switch
RBC wired remote
Strappable for up to 2,000 watts of power at 4 ohms
Class D amp technology
Turn-on mode

Features and Benefits
Compact size

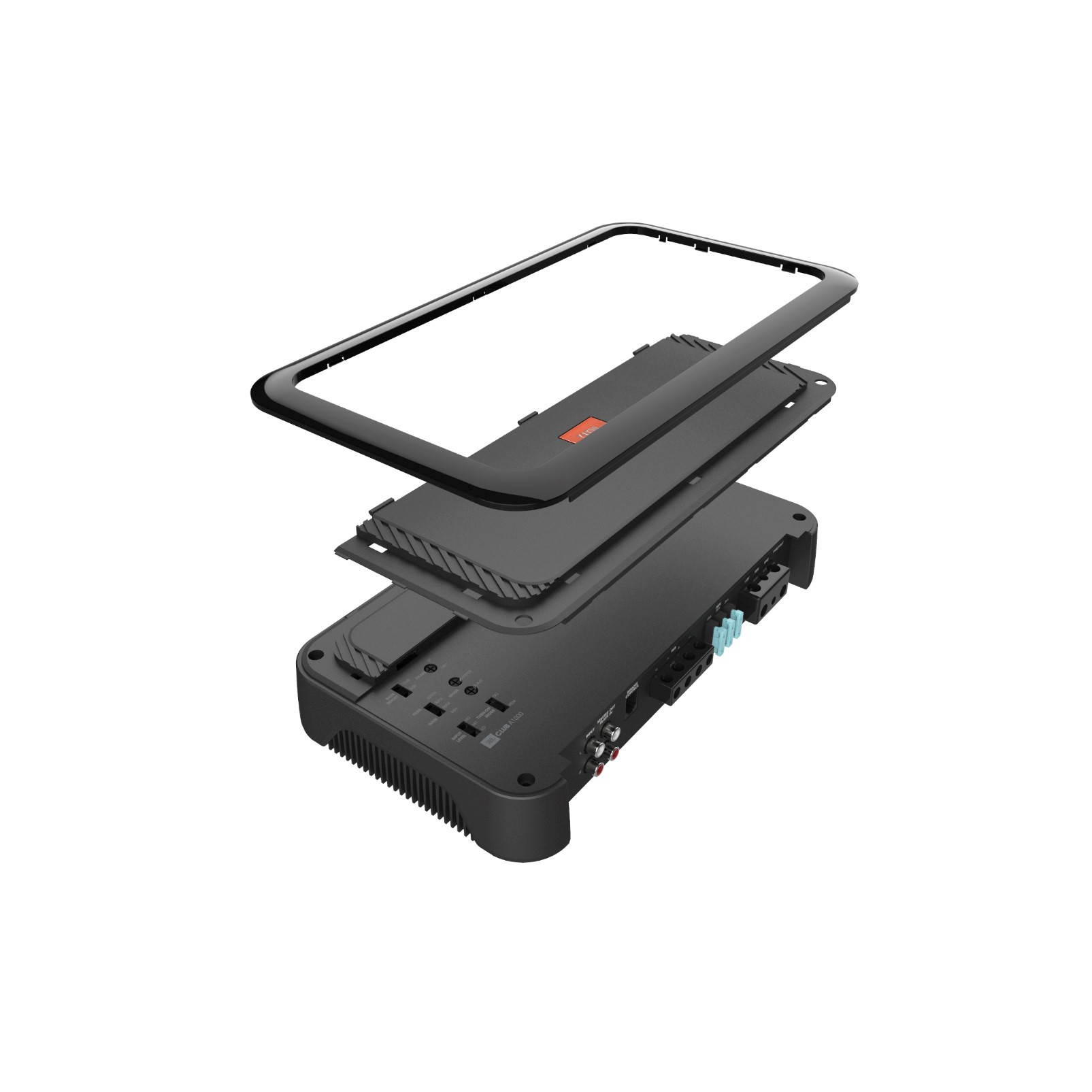

The JBL Club A1000 amplifier features a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.
High and low level input
Speaker-level and low-level inputs allow the Club A1000 to integrate with both aftermarket and factory car stereo systems.
Variable crossover and bass boost
Unlike many amplifiers available at similar prices, the JBL Club A1000 features variable electronic crossovers and bass boost circuits allowing for precise system tuning and performance.
Low noise and distortion
The Club A1000 has been engineered using Balanced Differential Inputs to ensure low noise and distortion even at high output levels. This also makes it far less susceptible to line induced radiated engine noise.
Input Level Control
When low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 2.0 Vrms. When high-level inputs are used, this control adjusts the input sensitivity between 2Vrms and 20Vrms.
Full on-board protection
On-board circuitry protects the Club A1000 from shorts, high-temperature, overvoltage and undervoltage. An LED indicator is provided to let you know when one of these conditions exists.
Phase Switch
This switch changes the input phase to inverted or non-inverted. This is especially helpful as part of system tuning based on the enclosure type and location in the vehicle.
RBC wired remote
The RBC wired remote is an easy installation and can be mounted for convenient volume adjustment from driver&rsquos seat.
Strappable for up to 2,000 watts of power at 4 ohms
Enable to strap two Club A1000 together to double your power. The primary amp will be in absolute control of secondary in terms of the crossover points, the gain and remote level control.
Class D amp technology
The JBL Club A1000 mono subwoofer amplifier delivers 1000-Watts RMS using a Class D amplifier design to ensure high output and minimum current draw.
Turn-on mode
This switch changes DC to REM to adapt with low-level signals or high-level signals, this is especially helpful as part of remote turn-on lead of your installation more choice. A selectable &ldquoTurn-on mode&rdquo can protect battery to avoid current drain, when you don&rsquot expect turn on your amplifier.

Technical specifications:
Mono subwoofer car amplifier
600 watts RMS x 1 at 4 ohms
(1000 watts RMS x 1 at 2 ohms)
Class D amp technology
Frequency response: 10&ndash320Hz
Variable low-pass filter (32&ndash320Hz,
12dB/octave)
Variable bass boost (0-12dB at 45Hz)
Phase switch (0, 180 degrees)
Wired remote level control included
Preamp inputs and outputs
Speaker-level inputs (speaker wire-to-RCA adapters included)
4-gauge power and ground leads recommended &mdash wiring and hardware not included with amplifier
Fuse rating: 35A x 3
W x H x D = 320mm x 51.3mm x 180mm
W x H x D = 12-5/8 x 2-1/16 x 7-1/8
